iLivestock eWeighBar 800 – Heavy-Duty Load Bars for Larger Livestock Platforms
When you need extra length and strength for weighing larger animals or wider platforms, the iLivestock eWeighBar 800 delivers. Built with the same rugged design as the 600 model — but with additional length for increased stability and compatibility — these bars are ideal for cattle chutes, alley weigh systems, or wider sheep handling setups.
At Twin Clover Equipment PA, we supply and support the eWeighBar 800 across Pennsylvania, Maryland, West Virginia, and Virginia, helping farmers install and integrate them with existing crushes, platforms, or digital weigh systems.
Built for Bigger Jobs
Extended 800mm / 31.5″ bar length for wider platforms and heavier applications
2,000 kg / 4,400 lb load capacity per set
Compatible with most weigh indicators, including the iLivestock eWeigh
Heavy-duty shielded TPR/PVC cables for long-term protection
Simple installation — mount directly to concrete or bolt under your crate or chute
Whether you’re working with beef cattle, large sheep flocks, or mixed livestock, the eWeighBar 800 offers accurate, hassle-free performance in any environment.
Technical Features
Aircraft-grade aluminum double shear beam load cells
5m PUR/PVC cables with stainless steel spring guard
Works under weigh platforms, crushes, or full-size handling systems
Backed by a 2-year warranty
Product Specifications
| Specification | Details |
|---|---|
| Coating | Galvanized finish |
| Length | 800mm / 31.5″ |
| Capacity | 2,000 kg / 4,400 lb |
| Resolution | 0.2 kg / 0.5 lb |
| Platform Fixing Points | 760mm |
| Bar Width | 75mm / 3″ |
| Height | 90mm / 3.5″ |
| Weight | Approx. 18–20 kg (varies by model) |
| Accuracy | +/-1% F.S. or 2d |
| Operating Temperature | -10°C to +40°C |
| Included Hardware | Mounting bolts for securing platform or crate |
Ready to Build Your Weighing Setup?

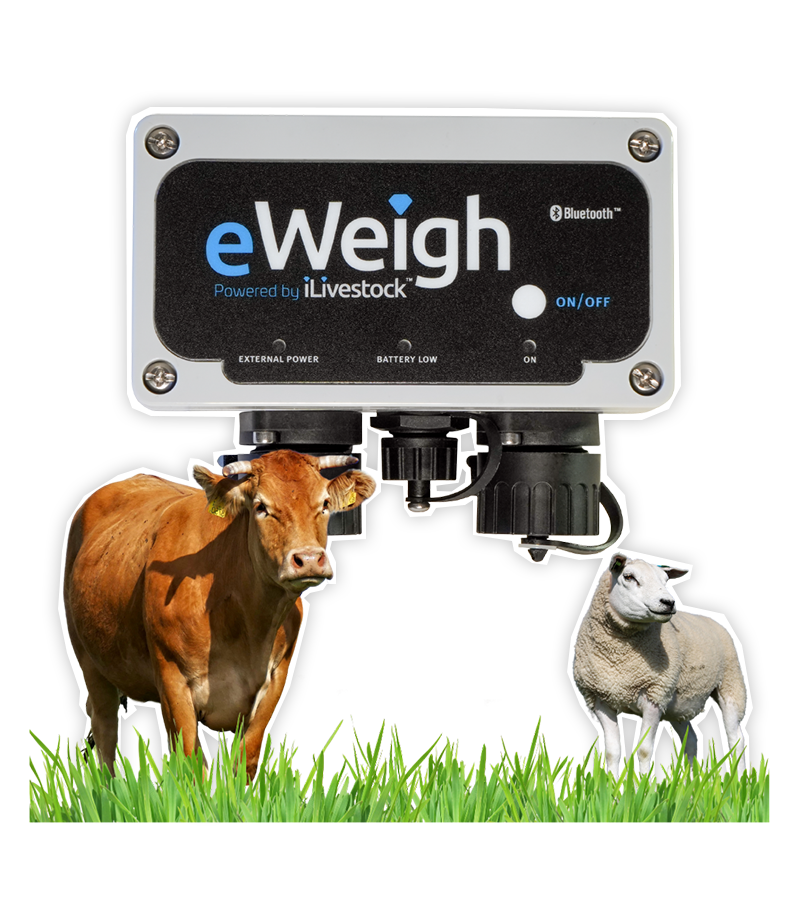

Pair the eWeighBar 800 with the iLivestock eWeigh indicator or your existing weigh monitor for a complete plug-and-play weighing system.
At Twin Clover Equipment PA, we offer:
✅ Local support
✅ Setup guidance
✅ Optional full weighing kit packages
📞 Get in touch today to request pricing or get matched with the right load bar setup for your farm.
